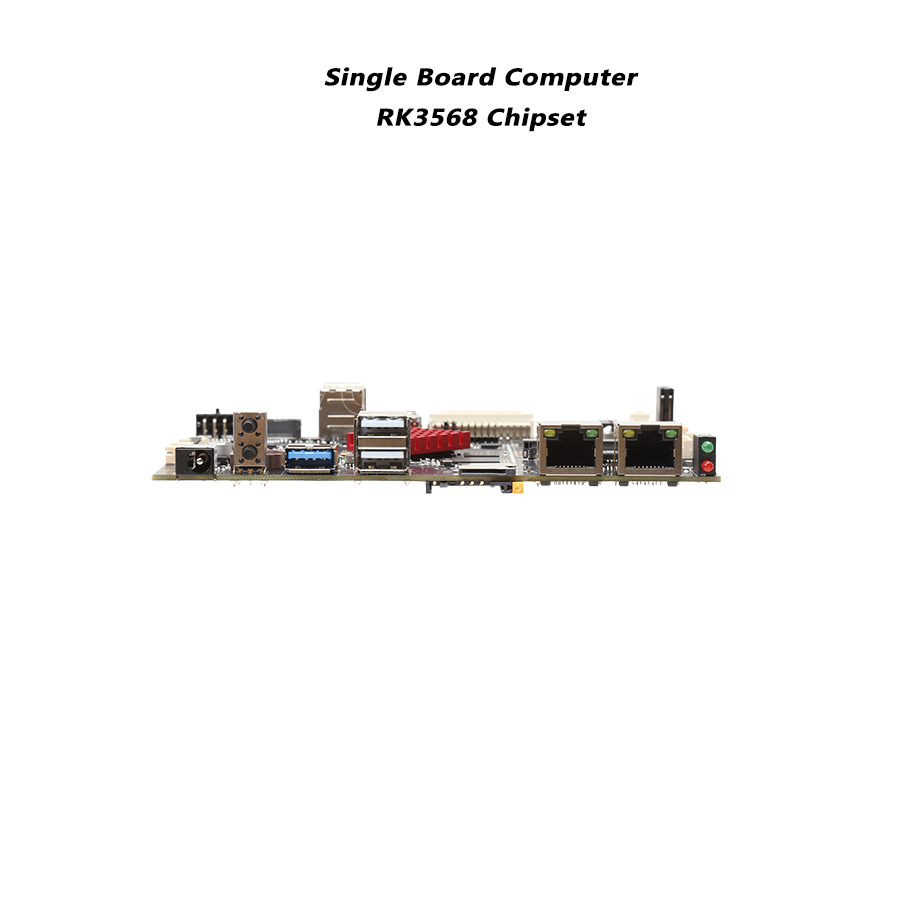

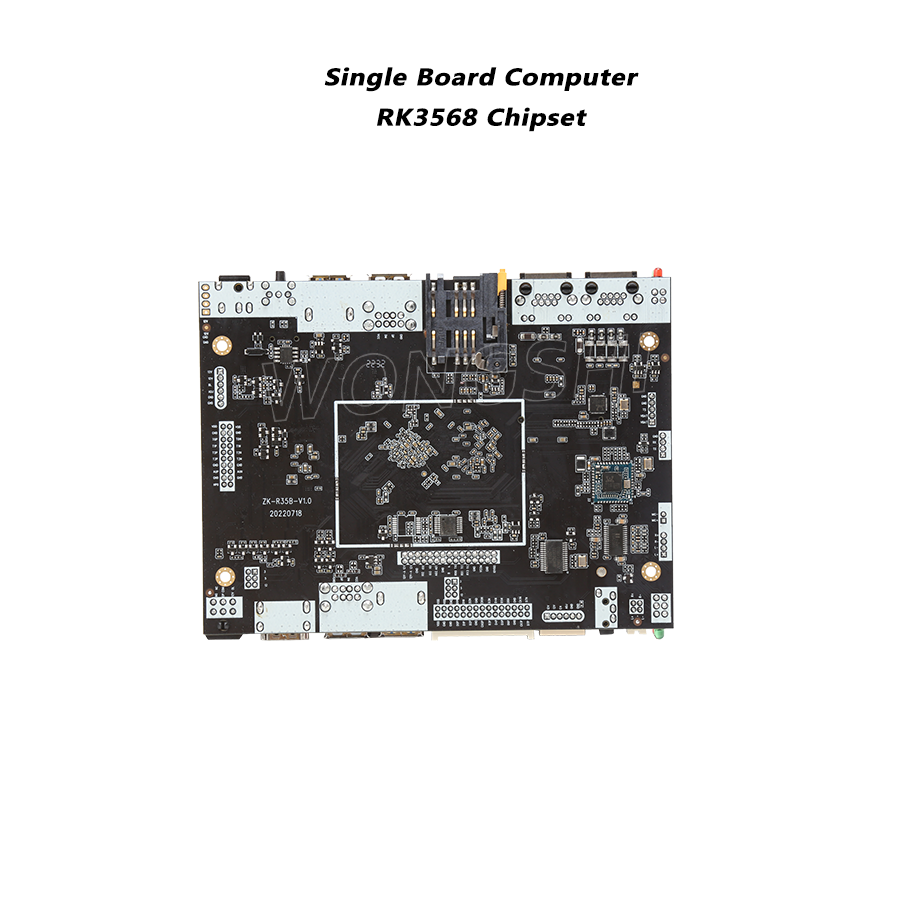

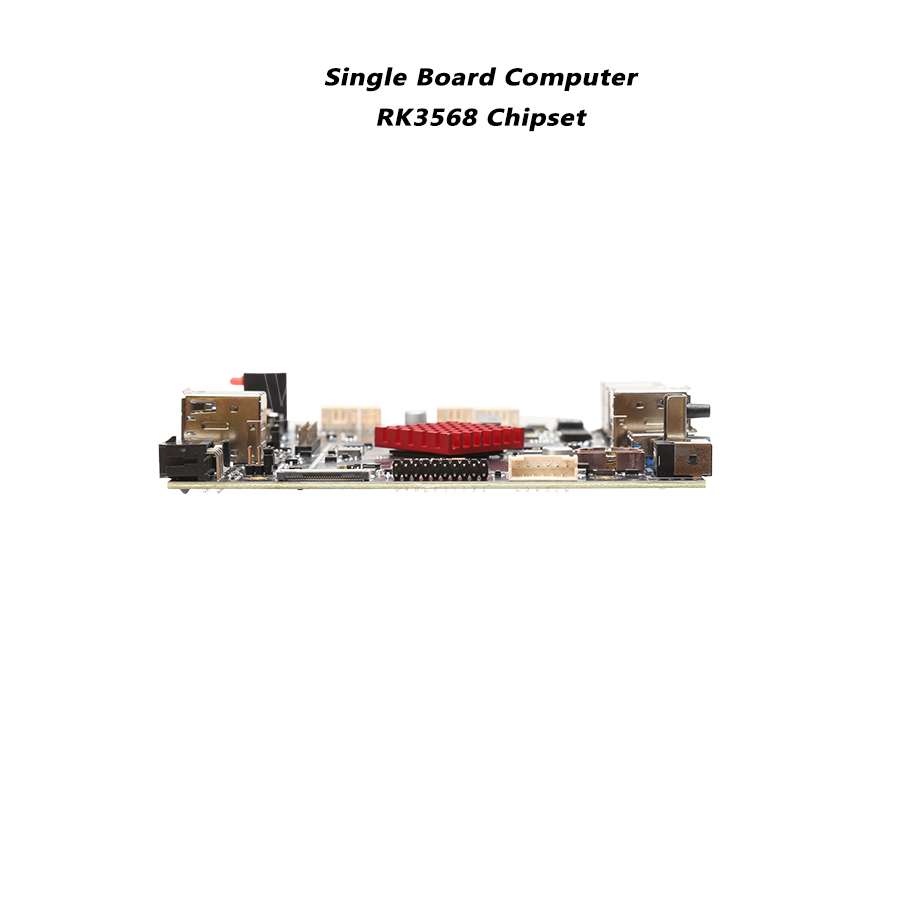

RockChip RK3568 四核安卓主板 WS-3568B

【 规格书下载 】

型号 WS-R3568B

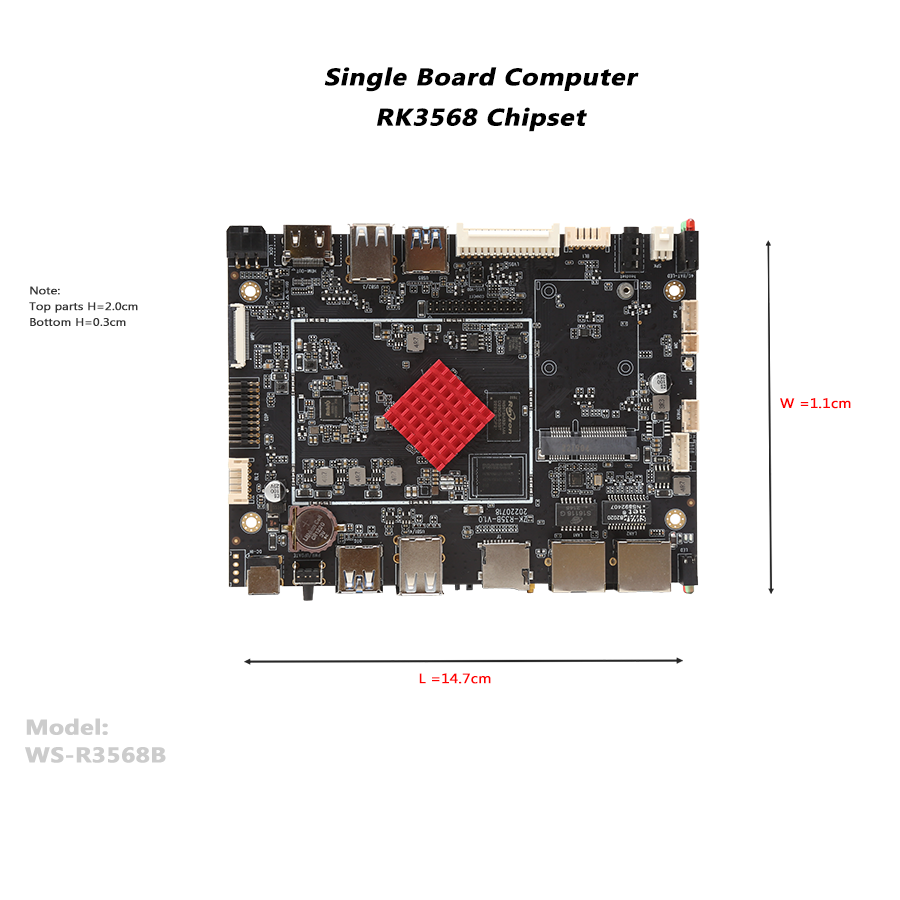

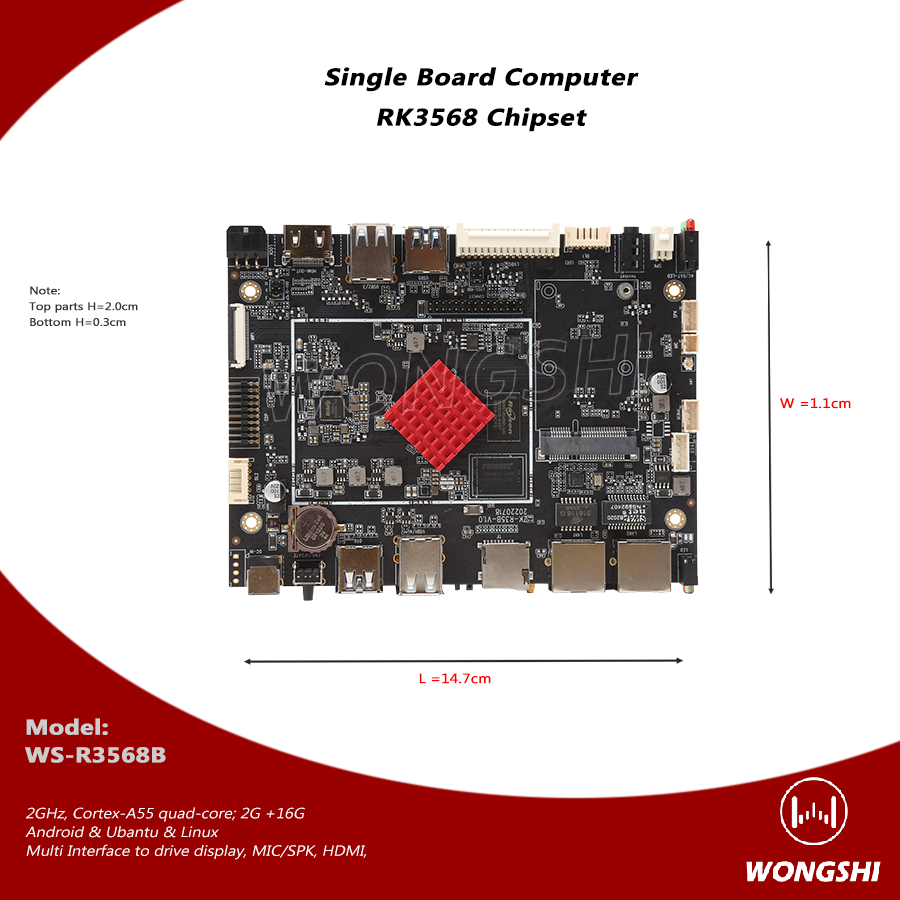

PCBA 长x宽x高：147mm* 110mm *20mm

https://docs.wongshi.com/data/WS-R3568B.pdf

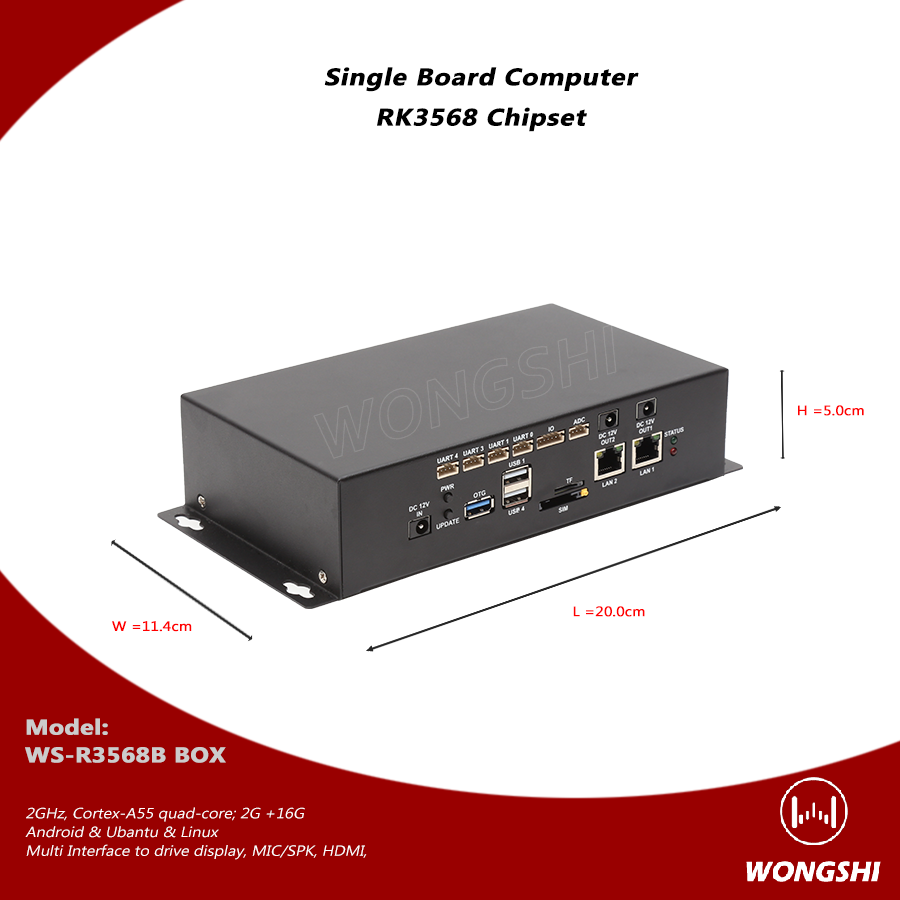

安卓主机 (型号 WS-R3568B)

※1.产品概述

• RK3568安卓智能主板，采用瑞芯微 RK3568 Cortex-A55 四核64位芯片方案，Mali-G52-2EE GPU ，支持谷歌 Android11系统，支持主流音视频格式和图片的解码。支持4K、H.265硬解码，多路视频输出和输入，嵌入式3D GPU使RK3568完全兼容OpenGL ES 1.1/2.0/3.2、OpenCL 2.0和Vulkan 1.1。特殊的2D硬件引擎将最大化显示性能并提供非常顺畅的操作，内置的NPU(1T)支持INT8/INT16/FP16/BFP16混合操作性能更强，速度更快，接口更丰富。

• 支持单双6/8 位的LVDS显示输出，支持EDP与MIPI显示 输出。支持HDMI-4K 输出，支持4K 视频播放。支持2.4GWIFI+BT、红外遥控器、重力感应、IO 口扩展、等功能，接口丰富，被广泛的应用到广告机、互动一体机、安防、工控等等智能控制领域。由于其硬件平台化、Android 智能化的特点，在需要进行人机交互，网络设备交互时，都可以在智能终端主板上进行使用。

※2.应用领域

◆ 广告机   ◆ 互动一体机   ◆ 工控机    ◆  教育班牌   ◆  人脸识别终端     ◆  通道闸机


※3.产品特点
◆ 多路显示接口：板卡支持LVDS (6/8/位）、EDP、HDMI多种显示输出接口。
◆ 丰富的扩展接口：4个USB2.0接口，4个可扩展RS232串口（可兼容TTL）, 4路GPIO接口，2个I2C接口，可以满足市场上各种外设的要求.
◆ 多种网络接口：以太网、无线WIFI、蓝牙、3G数据通信。
◆ 高清晰度：支持4K硬解码播放，支持横竖屏播放，视频分屏，滚动字幕，定时开关机，USB数据导入等功能。

※4.规格及性能参数

硬件指标/Hardware Index
处理器/CPU	Rockchip RK3568, 2GHz, Cortex-A55 quad-core, Mali-G52-2EE GPU. Equipped with NPU supporting 1T computing power
内存/RAM	LPDDR4 2GB, maximum support 8GB
存储/ROM	EMMC 16G, maximum support 256GB
Memory Expansion	Up to 128GB SDcard expansion
网络/Internet	With wifi module,support 2.4G/5G WiFi,support Wi-Fi802.11b/g/n agreement.
	With Bluetooth function,V2.1+EDR/Bluetooth3.0/3.0+HS/4.0
	With RJ45100 M network port,support Ethernet.
系统/System
操作系统/Operation System	Android 11
屏幕旋转/Rotation	Support 0degree,90degree,180degree,270degree manual rotation,support gravity sensing automatic screen function(Optional)
语言/Language	Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese,
	Korean, Russian, Spanish, Polish, Czech, etc multi-language
默认功能/Internet Function
Browser	Support UC Web, Google, etc multi-browser
Online Entertainment	Supports online video, TV, movie, music and radio
Office Software	WORD, EXCEL, POWERPOINT, PDF, TXT
Game	Internal 3D speed up, perfect to supports 3D game
Expansibility	Can free download More 20,000 games in Google market
视频/ Video Playback
格式/Format	Supports H.264,VP8,MAV,WMV,AVS,H.263,MPEG4 etc video format 1080P
	decoding and online video,max up to 4K*2K
Decoding Resolution	Max Up to 3840*2160
音频/Audio Playback
Format	Supports MP3,WMA,WAV,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV audio playback
Record Function	Supports MP3,WMA recording
附加功能/Additional Function
Image Browsing	Supports JPG, BMP,PNG and GIF image browsing, image rotation and picaslide Lite;
	Resolution is up to 4096*4096
Text Reading	Supports TXT,PDF,HTML,HTM,CHM,UMD
接口/Basic Interface
USB2.0 Interface	6,USB(2 external,one is HOST,one is OTG. Four are built in HOST)
UART Extension	3,UART(one is TTL/RS485,one is shared with SD card,one is shared with watchdog.).(Note:When them other board is K3XA,5UART(two of RS232,one of RS485,two TLL)
LVDS Output	1,LVDS/LVTTL Interface(single,6-bit dual,8-bit dual).support for maximum resolution 3840*2160
EDP output	1,Support for maximum resolution 3840*2160 4K*2K 30 frames
LCD Backlight Interface	1,standard 6 pin socket(power input can be selected between 12V/5V)
HDMI Output	1,Support 60 frames of HDMI2.0 4K*2K display
Headphone/Mic	One external headphone audio output and Mic input(standard:GNC,MIC,R,L)
Speaker Output	1,built-in socket Output,Can directly drive 2*10W/8Ω speakers
MIC-In	1,built-in socket Input
SD Card	1,standard TF card slot(up to 64G)
LAN	1,RJ45 standard 100M network port
Human body induction	1,human body sensing interface(depending on the structure can be directly soldered on the motherboard can also be connected by extension cable)
Interface
RTC Real Time Clock	1,clock battery holder
Power Supply	One external socket and internal 6P socket(with STB feature), DC 12V input
Two-Color LED Light	1,built-in two-color LED Indicator(boot indication and system operation indication,can be connected via extension cable)
Infrared Remote Receiver	1,built-in infrared remote control receiver(Can be connected to the PCB board or externally via extension cable according to the structure)
Button	One internal 6pin socket connected by extension wire
Touch panel socket	One internal 6P socket,provider I2C interface(support multi-RTP/CTP touch)
I/O socket	1,built-in 6P socket(supports five of GPIO extensions)
3/4G module interface	1,standard MINI-PCI-E3/4G module interface
SIM card interface	1,standard MICRO-SIM card connector
其他功能/Other Functions
Touch Screen	Supports capacitive /resistive/infrared touch
Other Input Devices	Supports USB keyboard/mouse/IR remote
Voice Function	Supports
Video Function	Supports USB camera up to 800wpixels
System special feature	Watch dogs,Timing power on&off,remote control power on&off
供电及功耗/Electrical Specifications
Power-In	Switching power supply；12V/3A
Consumption	<=2.5W,when speaker/LCD/back light inverter/USB device is not connected
工作温度/Working Environment
Working Temperature	0℃~40℃
Working Humidity	10%~90%, without condensation
Storage Temperature	-40℃~70℃,recommended 5℃~35℃

※5.可接受客户定制化开发
