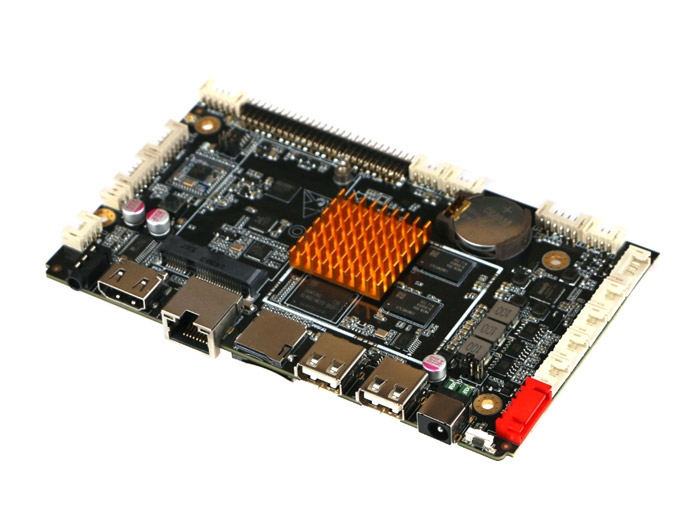

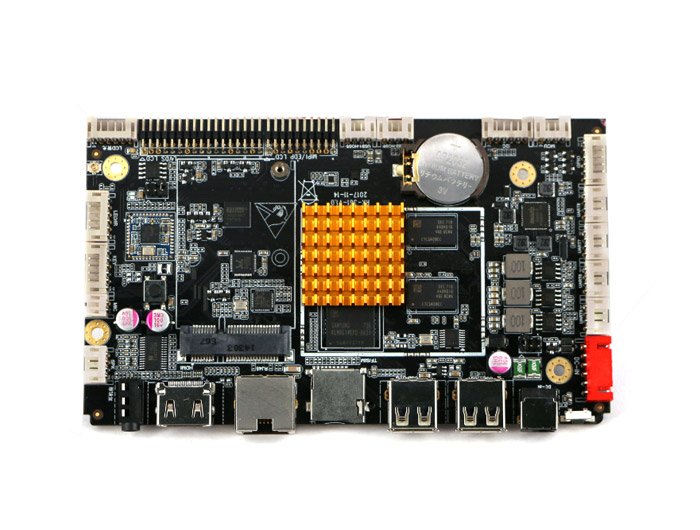

安卓主机 (型号 WS-361)
※1.产品概述
智能工业一体机大板，采用瑞芯微八核芯片RK3368方案，主频1.5GHz。加强型电源管理电路，具备WIFI、以太网、3G/4G数据通信，支持常用外接设备，接口丰富、性能稳定。适用于智能远程网络控制：类工业、大型广告机、教育视频终端、触摸一体等设备。
※2.应用领域
◆ 广告机 ◆ 互动一体机 ◆ 工控机 ◆ 教育班牌 ◆ 人脸识别终端 ◆ 通道闸机
※3.产品特点
◆ 多路显示接口：板卡支持LVDS (6/8/位）、EDP、HDMI多种显示输出接口。
◆ 丰富的扩展接口：4个USB2.0接口，4个可扩展RS232串口（可兼容TTL）, 4路GPIO接口，2个I2C接口，可以满足市场上各种外设的要求.
◆ 多种网络接口：以太网、无线WIFI、蓝牙、3G数据通信。
◆ 高清晰度：支持4K硬解码播放，支持横竖屏播放，视频分屏，滚动字幕，定时开关机，USB数据导入等功能。
※4.规格及性能参数
| 硬件指标/Hardware Index | |
| 处理器/CPU | Rockchip RK3368Octa-CoreCortex-A53MainFrequency1.5G; GPU PowerVRG6110 |
| 内存/RAM | DDR3 1G/2G(1G/2Goptional) |
| 存储/ROM | EMMC FLASH 8GB (8GB/16G/32Goptional) |
| Memory Expansion | Up to 64GB SDcard expansion |
| 网络/Internet | With wifi module,support 2.4G/5G WiFi,support Wi-Fi802.11b/g/n agreement. |
| With Bluetooth function,V2.1+EDR/Bluetooth3.0/3.0+HS/4.0 | |
| With RJ45100 M network port,support Ethernet. | |
| 系统/System | |
| 操作系统/Operation System | Android5.1 Lollipop |
| 屏幕旋转/Rotation | Support 0degree,90degree,180degree,270degree manual rotation,support gravity sensing automatic screen function(Optional) |
| 语言/Language | Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, |
| Korean, Russian, Spanish, Polish, Czech, etc multi-language | |
| 默认功能/Internet Function | |
| Browser | Support UC Web, Google, etc multi-browser |
| Online Entertainment | Supports online video, TV, movie, music and radio |
| Office Software | WORD, EXCEL, POWERPOINT, PDF, TXT |
| Game | Internal 3D speed up, perfect to supports 3D game |
| Expansibility | Can free download More 20,000 games in Google market |
| 视频/ Video Playback | |
| 格式/Format | Supports H.264,VP8,MAV,WMV,AVS,H.263,MPEG4 etc video format 1080P |
| decoding and online video,max up to 4K*2K | |
| Decoding Resolution | Max Up to 3840*2160 |
| 音频/Audio Playback | |
| Format | Supports MP3,WMA,WAV,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV audio playback |
| Record Function | Supports MP3,WMA recording |
| 附加功能/Additional Function | |
| Image Browsing | Supports JPG, BMP,PNG and GIF image browsing, image rotation and picaslide Lite; |
| Resolution is up to 4096*4096 | |
| Text Reading | Supports TXT,PDF,HTML,HTM,CHM,UMD |

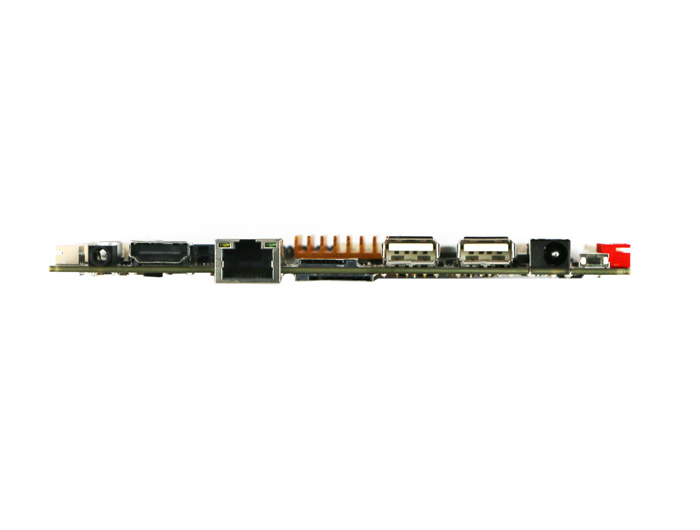

| 接口/Basic Interface | |
| USB2.0 Interface | 6,USB(2 external,one is HOST,one is OTG. Four are built in HOST) |
| UART Extension | 3,UART(one is TTL/RS485,one is shared with SD card,one is shared with watchdog.).(Note:When them other board is K3XA,5UART(two of RS232,one of RS485,two TLL) |
| LVDS Output | 1,LVDS/LVTTL Interface(single,6-bit dual,8-bit dual).support for maximum resolution 3840*2160 |
| EDP output | 1,Support for maximum resolution 3840*2160 4K*2K 30 frames |
| LCD Backlight Interface | 1,standard 6 pin socket(power input can be selected between 12V/5V) |
| HDMI Output | 1,Support 60 frames of HDMI2.0 4K*2K display |
| Headphone/Mic | One external headphone audio output and Mic input(standard:GNC,MIC,R,L) |
| Speaker Output | 1,built-in socket Output,Can directly drive 2*10W/8Ω speakers |
| MIC-In | 1,built-in socket Input |
| SD Card | 1,standard TF card slot(up to 64G) |
| LAN | 1,RJ45 standard 100M network port |
| Human body induction | 1,human body sensing interface(depending on the structure can be directly soldered on the motherboard can also be connected by extension cable) |
| Interface | |
| RTC Real Time Clock | 1,clock battery holder |
| Power Supply | One external socket and internal 6P socket(with STB feature), DC 12V input |
| Two-Color LED Light | 1,built-in two-color LED Indicator(boot indication and system operation indication,can be connected via extension cable) |
| Infrared Remote Receiver | 1,built-in infrared remote control receiver(Can be connected to the PCB board or externally via extension cable according to the structure) |
| Button | One internal 6pin socket connected by extension wire |
| Touch panel socket | One internal 6P socket,provider I2C interface(support multi-RTP/CTP touch) |
| I/O socket | 1,built-in 6P socket(supports five of GPIO extensions) |
| 3/4G module interface | 1,standard MINI-PCI-E3/4G module interface |
| SIM card interface | 1,standard MICRO-SIM card connector |
| 其他功能/Other Functions | |
| Touch Screen | Supports capacitive /resistive/infrared touch |
| Other Input Devices | Supports USB keyboard/mouse/IR remote |
| Voice Function | Supports |
| Video Function | Supports USB camera up to 800wpixels |
| System special feature | Watch dogs,Timing power on&off,remote control power on&off |
| 供电及功耗/Electrical Specifications | |
| Power-In | Switching power supply；12V/3A |
| Consumption | <=2.5W,when speaker/LCD/back light inverter/USB device is not connected |
| 工作温度/Working Environment | |
| Working Temperature | 0℃~40℃ |
| Working Humidity | 10%~90%, without condensation |
| Storage Temperature | -40℃~70℃,recommended 5℃~35℃ |
※5.可接受客户定制化开发
