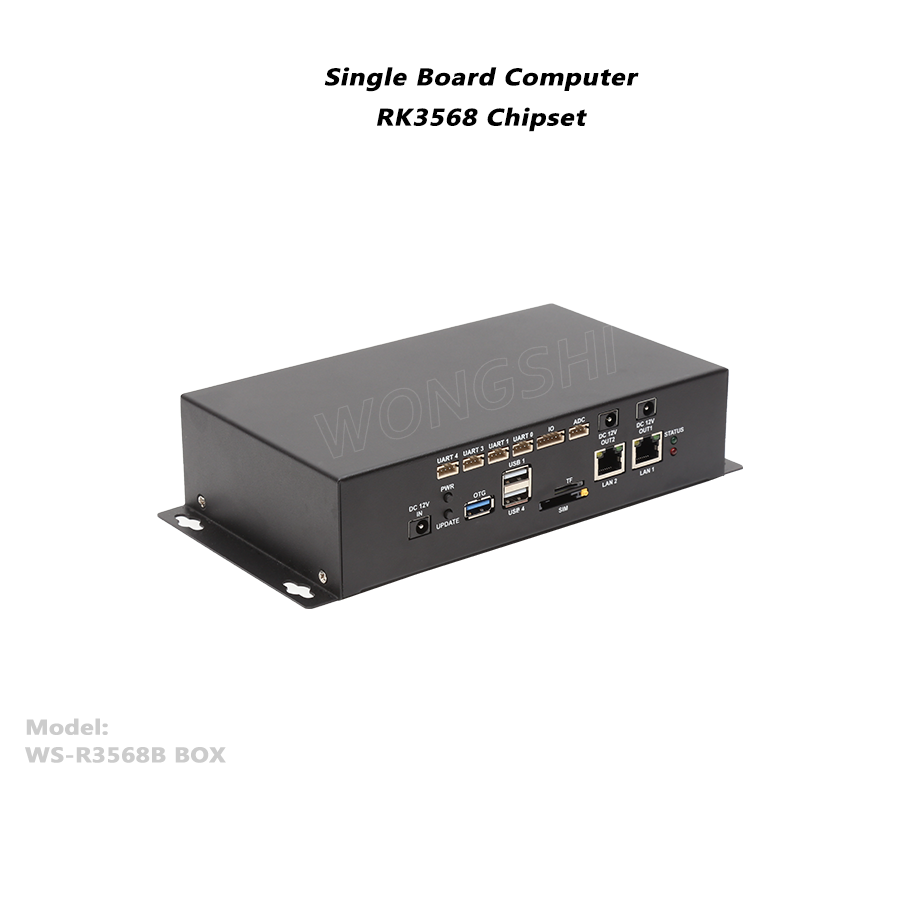

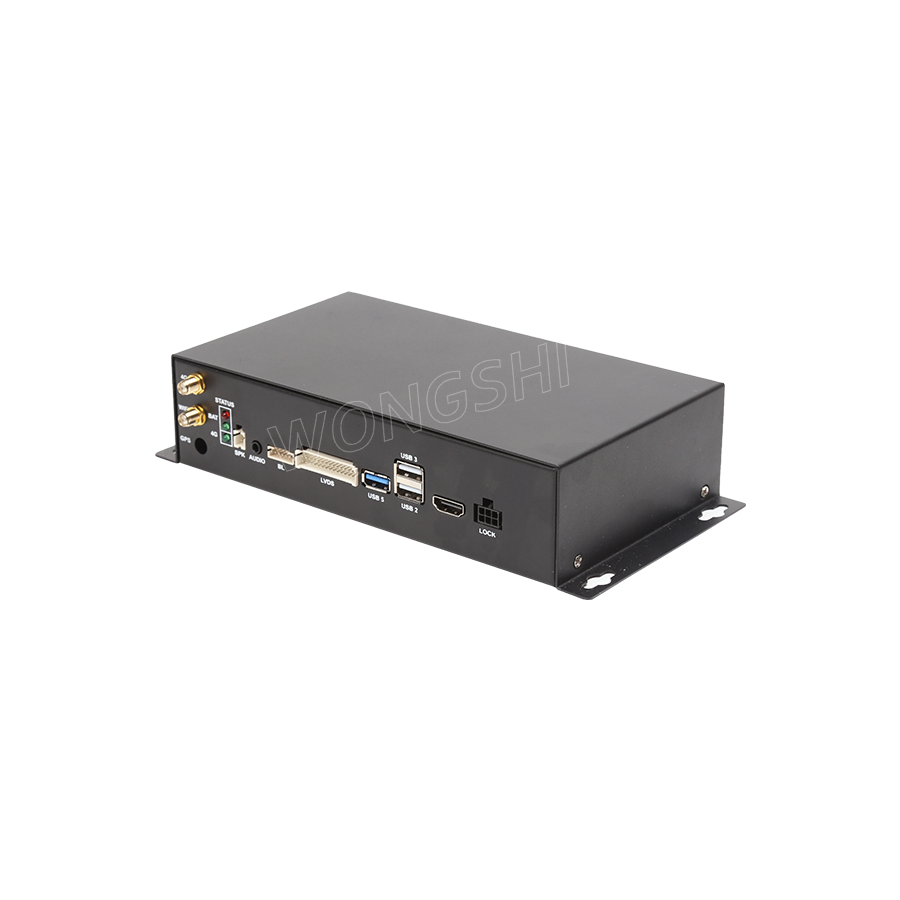

RockChip RK3568 Single Board Computer (Model WS-R3568B BOX)

  • Main Chip: RockChip RK3568
  • CPU:2.0GHz
  • Ports:LVDS+EDP+MIPI+HDMI
  • Internet:LAN/WiFi/4G LTE
  • Product description: Android Motherboard, RK3568, Digital Signage, Vending Machine
  • INQUIRY



【 datasheet download 】

Model: WS-R3568B

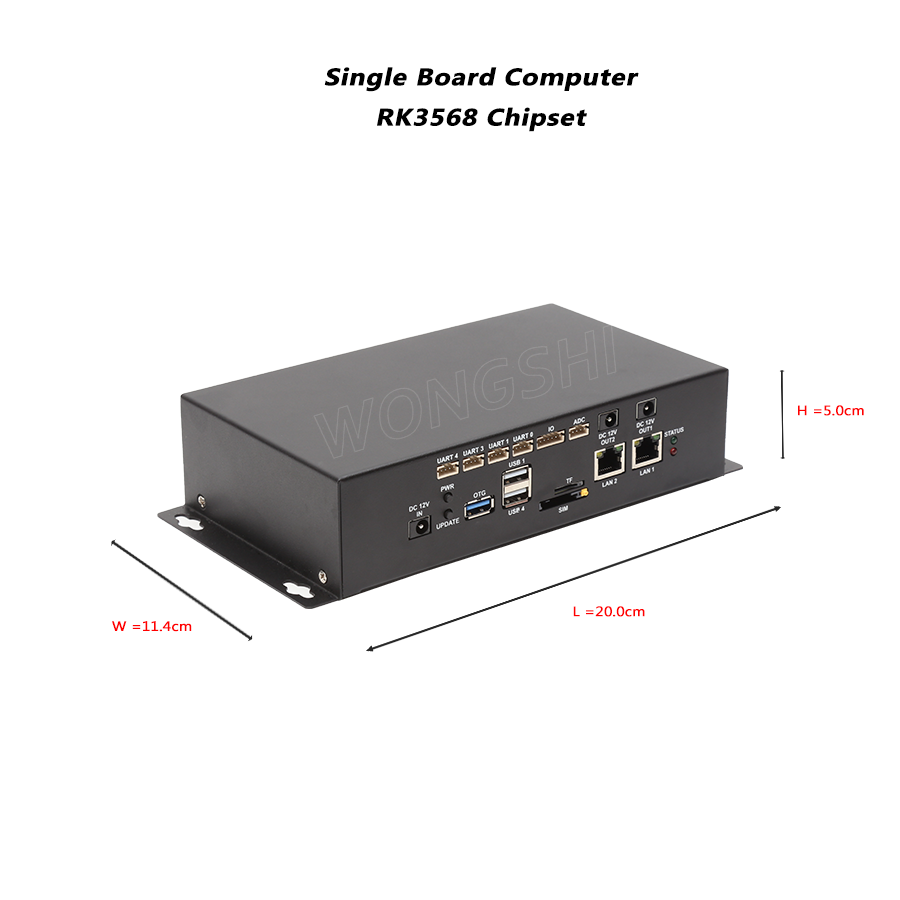

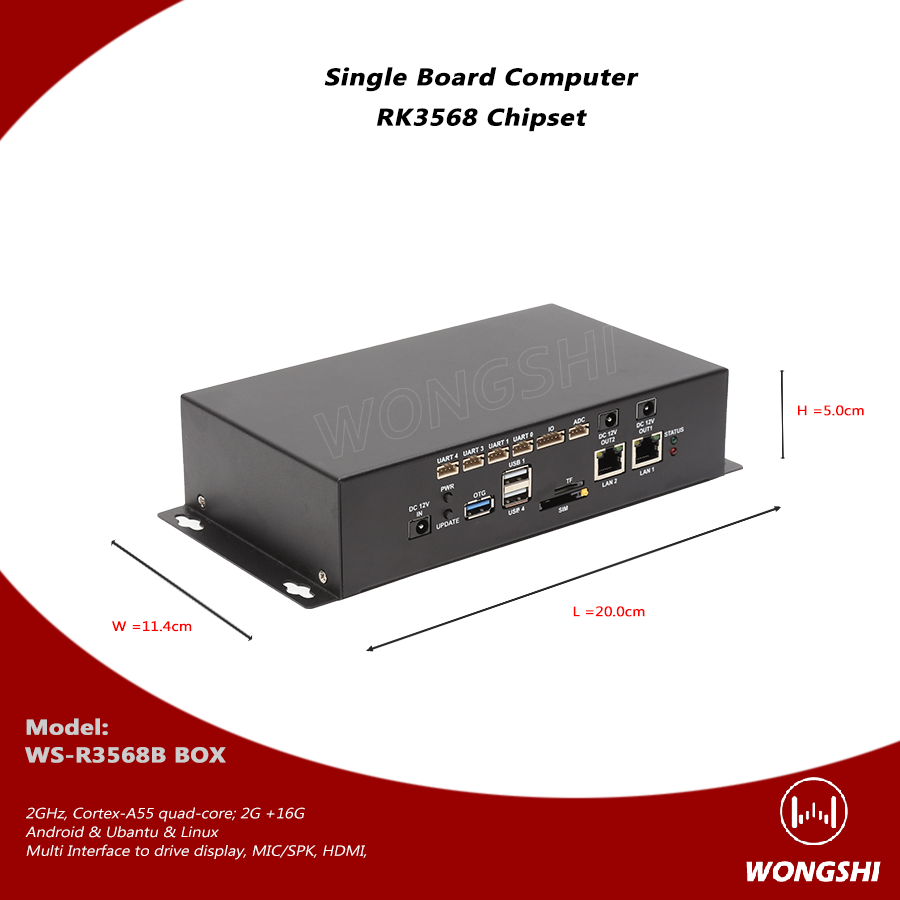

PCBA size LxWxH:200mm* 114mm *50mm

https://docs.wongshi.com/ws/WS-R3568B-datasheet.pdf



Android MotherBoard  ( Inside board model WS-R3568B)


※1. Product overview


The large board of intelligent industrial all-in-one machine adopts Rockchip's eight-core chip RK3568 solution, with a main frequency of 2.0GHz. Enhanced power management circuit, with WIFI, Ethernet, 3G/4G data communication, support for common external devices, rich interfaces and stable performance. Suitable for intelligent remote network control: industrial, large advertising machines, educational video terminals, touch all-in-one and other equipment.


※2. Application field

◆ Advertising machine ◆ Interactive all-in-one machine ◆ Industrial computer ◆ Education class card ◆ Face recognition terminal ◆ Channel gate


※3. Product Features
The RK3568 Android intelligent motherboard adopts the Rockchip RK3568 Cortex-A55
quad-core 64-bit chip solution, Mali-G52-2EE GPU, supports Google Android 11 system,
and supports decoding of mainstream audio and video formats and pictures. Supports
4K and H.265 hard decoding, multiple video output and input.
• The embedded 3D GPU makes the RK3568 fully compatible with OpenGL ES
1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1. The special 2D hardware engine will maximize
display performance and provide very smooth operation.
• The built-in NPU (1T) supports INT8/INT16/FP16/BFP16 mixed operations with
stronger performance, faster speed and richer interfaces. Supports single and double
6/8-bit LVDS display output, and supports EDP and MIPI display output. Supports
HDMI-4K output and 4K video playback.
• Supports 2.4G WIFI+BT, infrared remote control, gravity sensing, IO port expansion
and other functions. With rich interfaces, it is widely used in intelligent control fields
such as advertising machines, interactive all-in-one machines, security, and industrial
control. Due to its hardware platformization and Android intelligent characteristics, it
can be used on the intelligent terminal motherboard when human-computer interaction
and network device interaction are required.



※4. Hardware parameters

硬件指标/Hardware Index
处理器/CPU
Rockchip RK3568, 2GHz, Cortex-A55 quad-core, Mali-G52-2EE GPU. Equipped with
NPU supporting 1T computing power
内存/RAM
LPDDR4 2GB, maximum support 8GB
存储/ROM
EMMC 16G, maximum support 256GB
Memory Expansion Up to 256GB SDcard expansion
网络/Internet With wifi module,support 2.4G/5G WiFi,support Wi-Fi802.11b/g/n agreement.
With Bluetooth function,V2.1+EDR/Bluetooth3.0/3.0+HS/4.0
With RJ45100 M network port,support Ethernet.
系统/System
操作系统/Operation System
Android 11
屏幕旋转/Rotation Support 0degree,90degree,180degree,270degree manual rotation,support gravity sensing automatic screen function(Optional)
语言/Language Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese,
Korean, Russian, Spanish, Polish, Czech, etc multi-language
默认功能/Internet Function
Browser Support UC Web, Google, etc multi-browser
Online Entertainment Supports online video, TV, movie, music and radio
Office Software WORD, EXCEL, POWERPOINT, PDF, TXT
Game Internal 3D speed up, perfect to supports 3D game
Expansibility Can free download More 20,000 games in Google market
视频/ Video Playback
格式/Format Supports H.264,VP8,MAV,WMV,AVS,H.263,MPEG4 etc video format 1080P
decoding and online video,max up to 4K*2K
Decoding Resolution Max Up to 3840*2160
音频/Audio Playback
Format Supports MP3,WMA,WAV,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV audio playback
Record Function Supports MP3,WMA recording
附加功能/Additional Function
Image Browsing Supports JPG, BMP,PNG and GIF image browsing, image rotation and picaslide Lite;
Resolution is up to 4096*4096
Text Reading Supports TXT,PDF,HTML,HTM,CHM,UMD
接口/Basic Interface
USB2.0 Interface 6,USB(2 external,one is HOST,one is OTG. Four are built in HOST)
UART Extension 3,UART(one is TTL/RS485,one is shared with SD card,one is shared with watchdog.).(Note:When them other board is K3XA,5UART(two of RS232,one of RS485,two TLL)
LVDS Output 1,LVDS/LVTTL Interface(single,6-bit dual,8-bit dual).support for maximum resolution 3840*2160
EDP output 1,Support for maximum resolution 3840*2160 4K*2K 30 frames
LCD Backlight Interface 1,standard 6 pin socket(power input can be selected between 12V/5V)
HDMI Output 1,Support 60 frames of HDMI2.0 4K*2K display
Headphone/Mic One external headphone audio output and Mic input(standard:GNC,MIC,R,L)
Speaker Output 1,built-in socket Output,Can directly drive 2*10W/8Ω speakers
MIC-In 1,built-in socket Input
SD Card 1,standard TF card slot(up to 64G)
LAN 1,RJ45 standard 100M network port
Human body induction 1,human body sensing interface(depending on the structure can be directly soldered on the motherboard can also be connected by extension cable)
Interface
RTC Real Time Clock 1,clock battery holder
Power Supply One external socket and internal 6P socket(with STB feature), DC 12V input
Two-Color LED Light 1,built-in two-color LED Indicator(boot indication and system operation indication,can be connected via extension cable)
Infrared Remote Receiver 1,built-in infrared remote control receiver(Can be connected to the PCB board or externally via extension cable according to the structure)
Button One internal 6pin socket connected by extension wire
Touch panel socket One internal 6P socket,provider I2C interface(support multi-RTP/CTP touch)
I/O socket 1,built-in 6P socket(supports five of GPIO extensions)
3/4G module interface 1,standard MINI-PCI-E3/4G module interface
SIM card interface 1,standard MICRO-SIM card connector
其他功能/Other Functions
Touch Screen Supports capacitive /resistive/infrared touch
Other Input Devices Supports USB keyboard/mouse/IR remote
Voice Function Supports
Video Function Supports USB camera up to 800wpixels
System special feature Watch dogs,Timing power on&off,remote control power on&off
供电及功耗/Electrical Specifications
Power-In Switching power supply;12V/3A
Consumption <=2.5W,when speaker/LCD/back light inverter/USB device is not connected
工作温度/Working Environment
Working Temperature 0℃~40℃
Working Humidity 10%~90%, without condensation
Storage Temperature -40℃~70℃,recommended 5℃~35℃


※5.Customized development is acceptable
